美国 JBL音箱

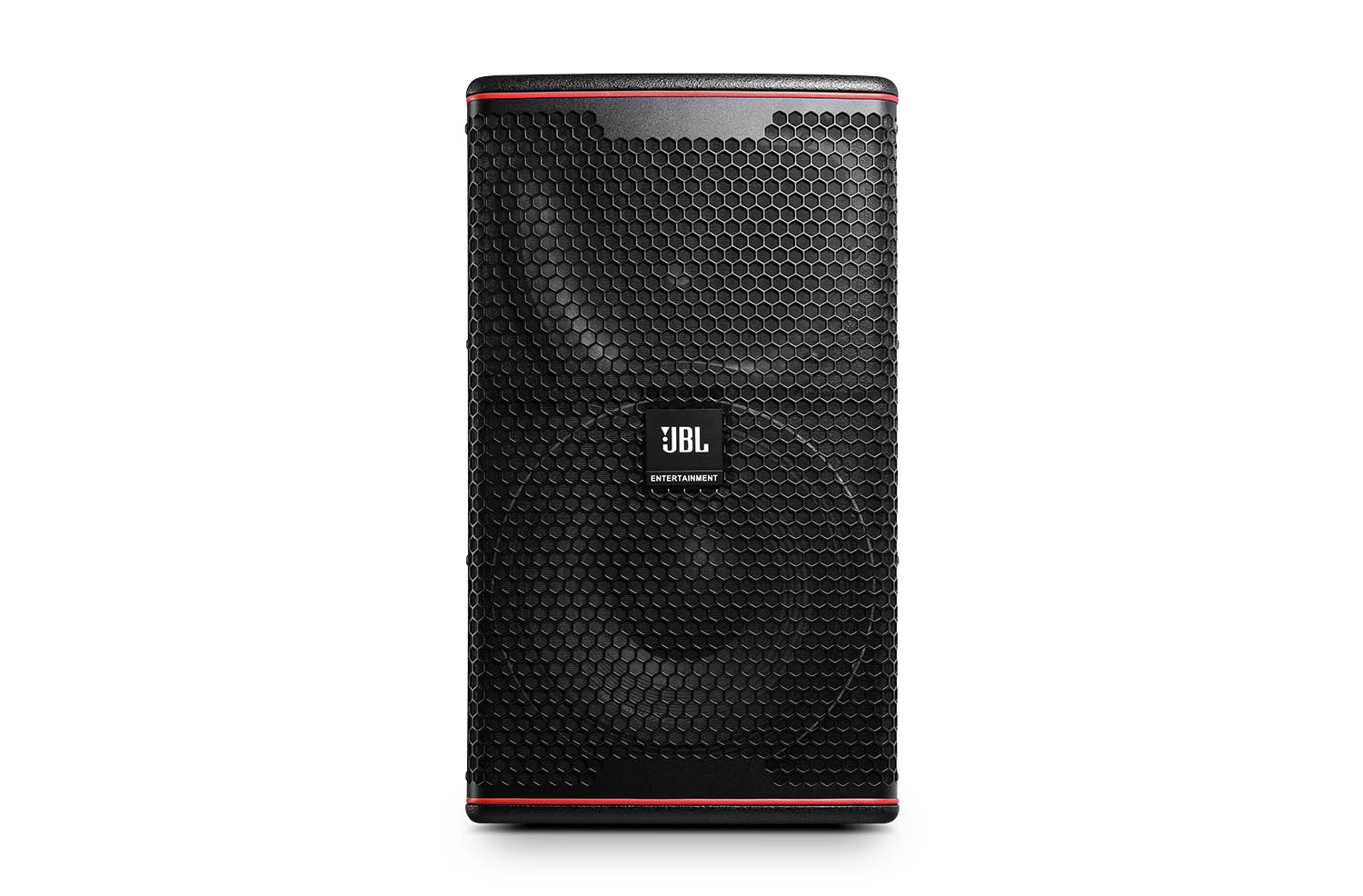

JBL KP8052 无源12英寸KTV娱乐扬声器

,主要特点: 无源 2 分频,低频反射式,12 英寸 JBL 2261H 大功率铷铁硼差分驱动低音扬声器,具有高功率处理和轻巧的设计, 高音采用 1.5 英寸 JBL 2408H-1 环形聚乙烯振膜及铷铁硼磁钢压缩驱动单元SonicGuard™ 声音保护技术,有效保护高音单元,避免功率过载,而不会牺牲音频质量JBL 标志性的卡拉 OK 调校具有出色的人声和低音表现精密设计的分频器可增加人声表现力和清晰度更好时尚,现代的设计,非常适合和种 KTV 应用和安装,可旋转的 JBL Entertainment 商标,可根据安装方向调整 35 mm 的支杆插座设计,多个 M10 螺纹悬挂点,满足使用支撑杆或悬挂等多种应用需求

在线咨询全国热线
18171414442

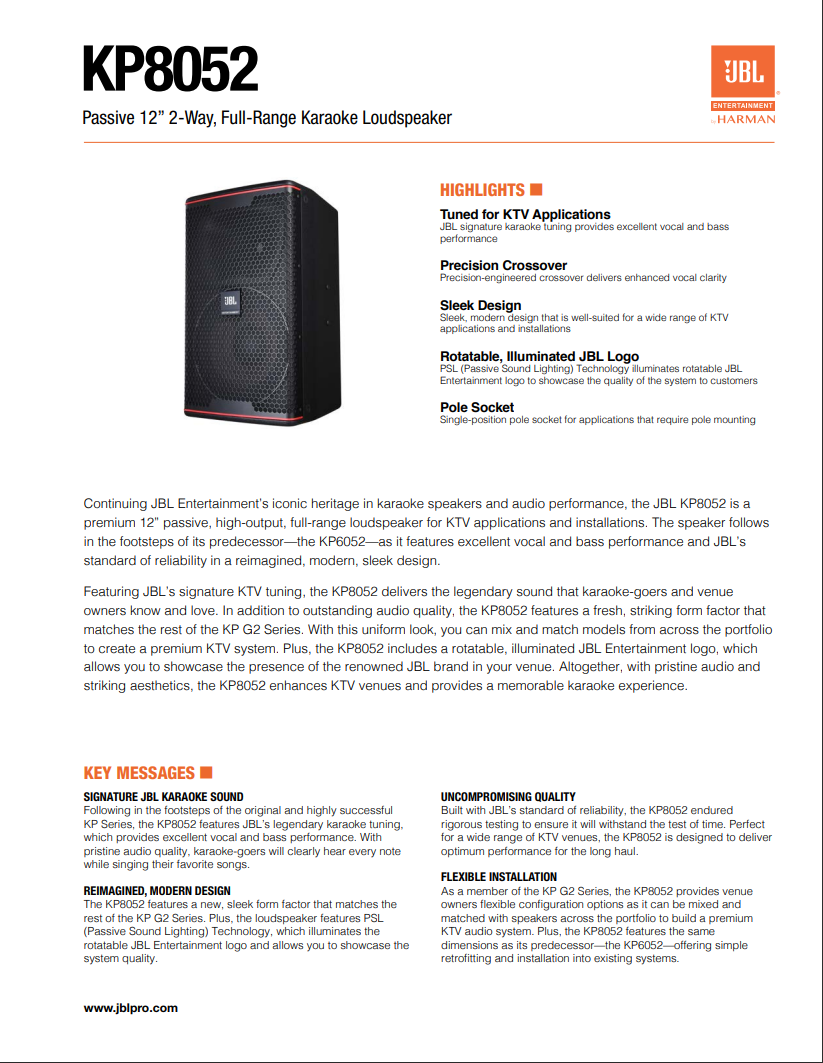

Passive 12” 2-Way, Full-Range Karaoke Loudspeaker

Continuing JBL Entertainment’s iconic heritage in karaoke speakers and audio performance, the JBL KP8052 is a premium 12” passive, high-output, full-range loudspeaker for KTV applications and installations. The speaker follows in the footsteps of its predecessor—the KP6052—as it features excellent vocal and bass performance and JBL’s standard of reliability in a reimagined, modern, sleek design.
Featuring JBL’s signature KTV tuning, the KP8052 delivers the legendary sound that karaoke-goers and venue owners know and love. In addition to outstanding audio quality, the KP8052 features a fresh, striking form factor that matches the rest of the KP G2 Series. With this uniform look, you can mix and match models from across the portfolio to create a premium KTV system. Plus, the KP8052 includes a rotatable, illuminated JBL Entertainment logo, which allows you to showcase the presence of the renowned JBL brand in your venue. Altogether, with pristine audio and striking aesthetics, the KP8052 enhances KTV venues and provides a memorable karaoke experience.

特点

  • Passive 2-way, bass-reflex full-range karaoke loudspeaker

  • 12” Differential Drive® woofer with high-power handling and lightweight design

  • 1.5” annular polymer diaphragm compression driver

  • SonicGuard™ protects high-frequency driver from excess power without sacrificing audio quality

  • JBL signature karaoke tuning provides excellent vocal and bass performance

  • Precision-engineered crossover delivers enhanced vocal clarity

  • Sleek, modern design that is well-suited for a wide range of KTV applications and installations

  • PSL (Passive Sound Lighting) Technology illuminates rotatable JBL Entertainment logo

  • Single-position pole socket for applications that require pole mounting


  • 产品技术参数:

  • 类型:12英寸两分频、低频反射式

  • 额定/峰值功率:500W/2000W

  • 频率响应:80Hz-20kHz

  • 频率范围:55Hz-20kHz

  • 灵敏度(1W/1m) :96dB

  • 输出声压级:131dB

  • 额定阻抗:8Ω

  • 净重:17.7千克

  • 尺寸(HxWxD):604mmx350mmx397mm

  • ◆12英寸JBL2262H大功率铷铁硼差分驱动低音扬音器,具有高功率处理和轻巧的设计。

  • ◆高音采用1.5英寸JBL2408H-1环形聚乙烯振膜及铷铁硼磁钢压缩驱动单元。

  • ◆SonicGuardTM声音保护技术,有效保护高音单元,避免功率过载,而不会牺牲音频质量。

  • ◆全系列都配备了可旋转的发光JBL Entertinment商标,其搭载PSL(Passive Sound

  • Lighting无源系统声光技术,使场所经营者得以展现JBL品牌和系统品质,帮助衬托

  • 提升场所的高端氛围。

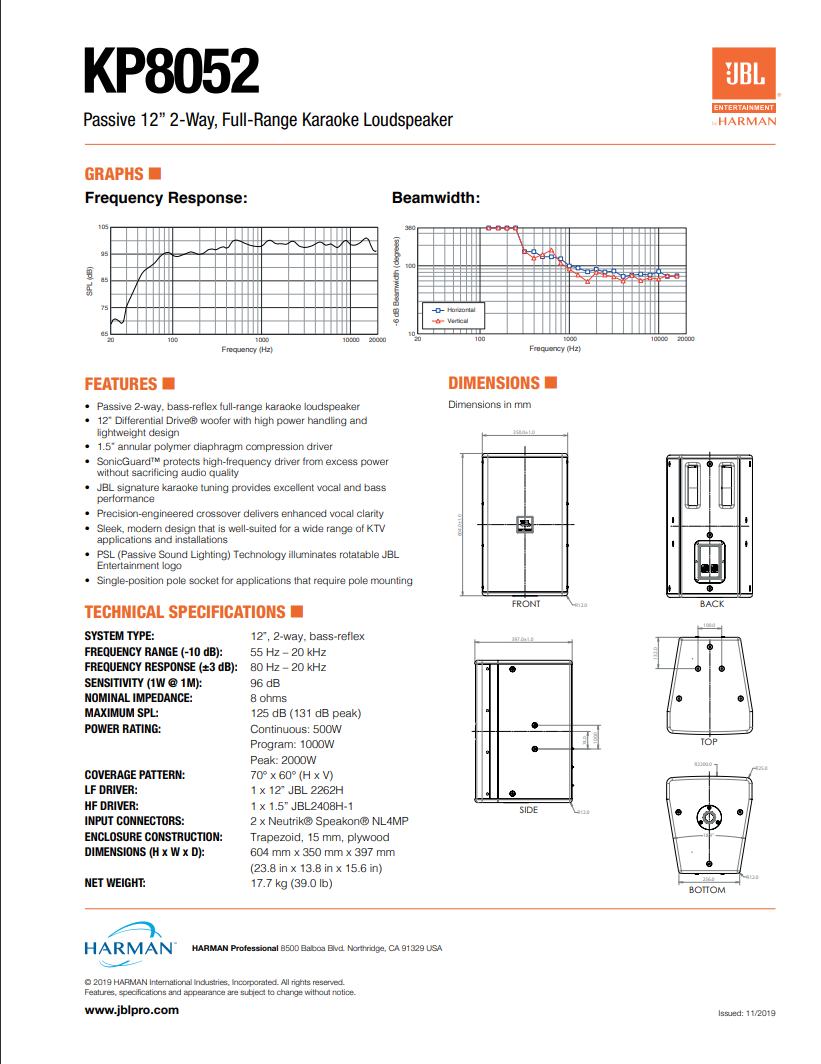

性能


系统类型12”, 2-way, Bass-Reflex
频率范围 (-10dB)55 Hz – 20 kHz
Frequency Response (±3 dB)80 Hz – 20 kHz

灵敏度

96 dB
标称阻抗8 Ohms
Maximum SPL (1m)125 dB (131 dB peak)
额定功率Continuous: 500W Program: 1000W Peak: 2000W
覆盖范围70° x 60° (H x V)
尺寸(高 x 宽 x 厚)604 mm x 350 mm x 397 mm (23.8 in x 13.8 in x 15.6 in)
净重量17.7 Kg (39.0 lbs.)
低频驱动单元1 x 12” JBL 2262H
HF 驱动程序1 x 1.5” JBL2408H-1

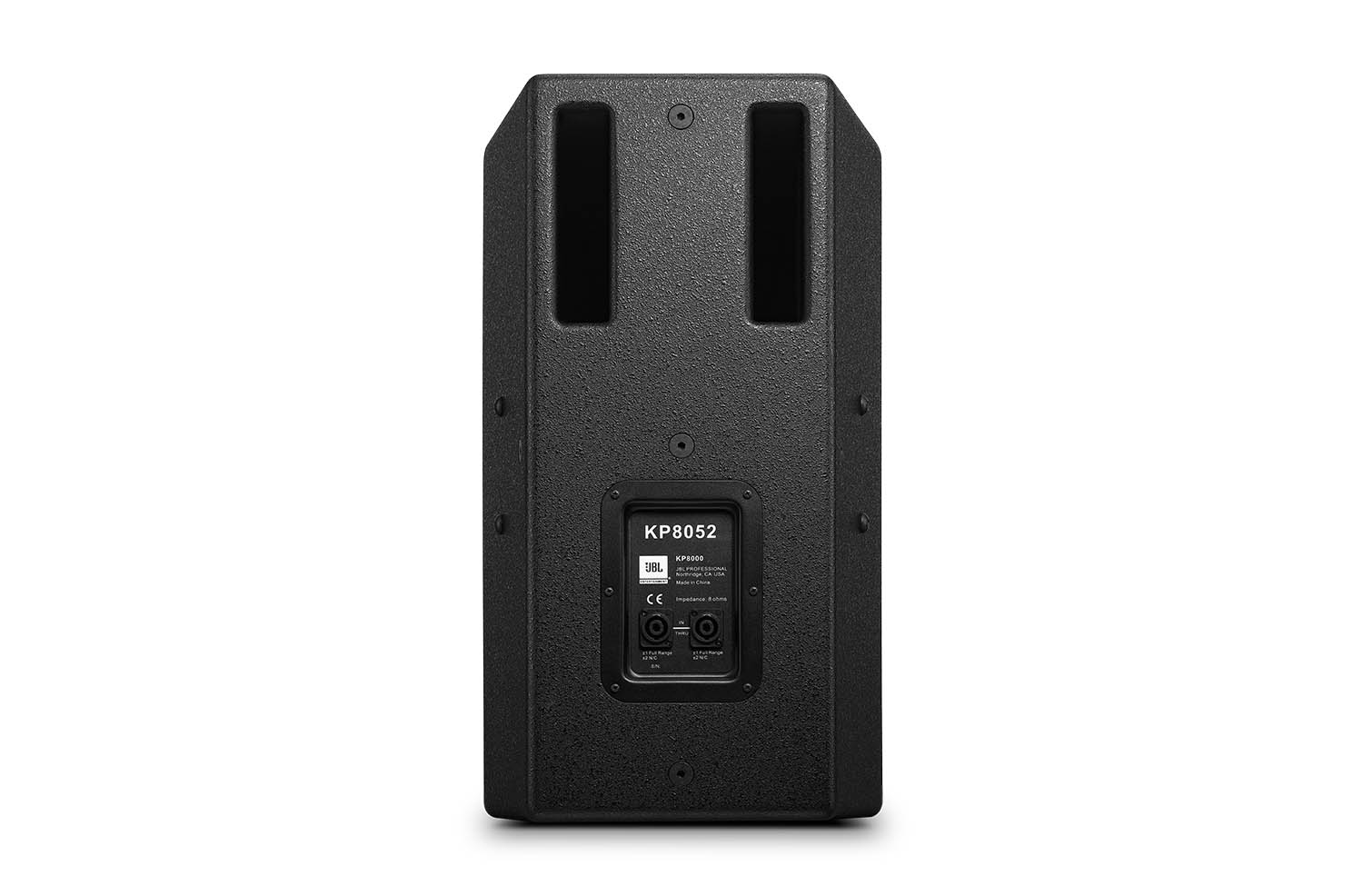

输入接口2 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTIONTrapezoid, 15 mm, plywood
